Access Control System – traditional installation

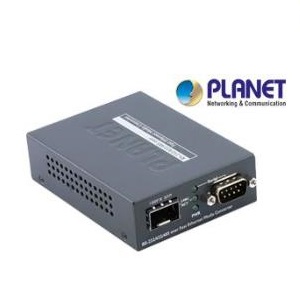

Most of the enterprises and governments use access control plate and Mifare or RFID to authorize entrance identity. With traditional deployment, access control machines use the RS-232 or RS-485 serial interface and cables connecting to login server. With connection with the ICS-10x Serial over Fast Ethernet Converter, the access control machine is able to be extended over longer distances via fiber optical interface. The distance can be up to 20km in a local range. The ICS-10x can also be linked to a XDSL router to get the internet access capability; then the access control can be set and monitored over the internet.



Process Control
The PLC (Programmable Logical Control) is required to monitor, configure and manage the Robot conveyer including other machines in the manufacturing process. The ICS-10x can be set to TCP Server mode and connect with the PLC. Therefore, the administrator can remotely configure and set command settings through Fast Ethernet intranet to control the PLC, the administrators and workstations. There is no need for the administrators to be always by the I/O machine.



RTU Data Collect – UDP Mode
The RTU (Remote Terminal Unit) may be applied to collect and monitor the data of waves, signal and power utilization. Connecting the RTU with the ICS-10x in UDP mode, the data can be sent over Fast Ethernet to local server or over Internet to remote server automatically.

Surveillance Motion Control – Pair Connection Mode
Using pair connection along with the fiber optical patch cord, the ICS-10x extends the remote central surveillance monitoring with the control keyboard/joystick via RS-232 / RS-422 / RS-485 interfaces
