| Portlar |

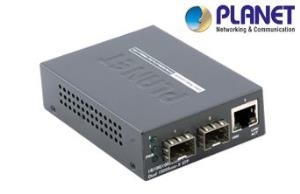

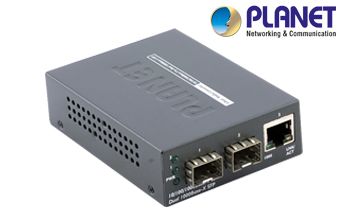

Bakırr: 1 x 10/100/1000Base-T port
Fiber: 2 x 1000Base-SX / LX SFP interfaces |
| Optik Arayüzü |
SFP |
| Optik Dalga boyu |
Vary on SFP module |
| Launch Power (dBm) |
Max.: Vary on SFP module
Min.: Vary on SFP module |
| Receive Sensitivity |
Vary on SFP module |
| Maximum Input power |
Vary on SFP module |
| Kablo |
Twisted-pair:
¦ 10Base-T: 2-Pair UTP CAT. 3,4,5, up to 100 meters
¦ 100Base-TX: 2-Pair UTP CAT. 5, 5e up to 100 meters
¦ 1000Base-T: 4-Pair UTP CAT. 5e,6 up to 100 meters
Fiber-optic cable:
¦ 50/125μm or 62.5/125μm multi-mode fiber cable, up to 220
and 550 meters
¦ 9/125μm single-mode cable, provides long distance for 10/
15/20/30/40/50/60/70/120km or longer (vary on SFP module) |
| Switch Processing Scheme |
Store-and-Forward |
| Switching Fabric |
6Gbps / non-blocking |
| LED |
System: One Power LED
TP Port :
¦ One Speed (On:1000Mbps; Off: 10/100Mbps),
¦ One LNK/ACT
Fiber Port: Two Link/Act LED |
| Ölçüler (W x D x H) |
94 x 70 x 26 mm |
| Ağırlık |
191g (device only) |
| Güç |
110V: 4.9Watts Max.
220V: 5.4Watts Max. |
| Standartlar |
IEEE 802.3, 10Base-T
IEEE 802.3u, 100Base-TX
IEEE 802.3ab, 1000Base-T
IEEE 802.3z, 1000Base-SX / LX
IEEE 802.3x, Flow Control |
