WNAP-6325 IP55 802.11b/g/n 2.4GHz/300Mbps Outdoor WLAN CPE, built-in 14 dBi antenna
Stok Kodu : MWNAP6325A
Marka : PLANET
Adet :
113,60 USD +KDV
142,00 USD +KDV
734,57 TL KDV Dahil
Ürün Dokümanı
Özellikler :
Hardware Specifications
Standard Support IEEE 802.11b/g/n
IEEE 802.3
IEEE 802.3u
IEEE 802.3x
Memory 64 Mbytes DDR SDRAM
16 Mbytes Flash
PoE Passive PoE
Interface Wireless IEEE802.11b/g/n, 2T2R
PoE LAN (LAN 1): 1 x 10/100Base-TX, auto-MDI/MDIX, passive PoE
LAN 2: 1 x 10/100Base-TX, auto-MDI/MDIX, passive PoE pass-through
Antenna Built-in 14dBi dual-polarization antenna
- Horizontal: 30 degrees
- Vertical: 20 degrees
Wireless RF Specifications
Wireless Technology IEEE 802.11b/g
IEEE 802.11n
Data Rate IEEE 802.11b: 1, 2, 5.5, 11Mbps
IEEE 802.11g: up to 54Mbps
IEEE 802.11n (20MHz): up to 150Mbps
IEEE 802.11n (40MHz): up to 300Mbps
Media Access Control CSMA/CA
Modulation Transmission/Emission type: OFDM
Data modulation type: OFDM with BPSK, QPSK, 16-QAM, 64-QAM
Frequency Band 2.412GHz ~ 2.484GHz
Operating Channel America/ FCC: 2.414~2.462GHz (11 Channels)
Europe/ ETSI: 2.412~2.472GHz (13 Channels)
Japan/ TELEC: 2.412~2.484GHz (14 Channels)
RF Output Power (Max.) IEEE 802.11b: up to 25 ± 1dBm
IEEE 802.11g: up to 22 ± 1dBm
IEEE 802.11n: up to 21 ± 1dBm
Receiver Sensitivity (dBm) IEEE 802.11b: -94dBm
IEEE 802.11g: -91dBm
IEEE 802.11n: -89dBm
Output Power Control 12~27dBm
Power Consumption 12W
Power Requirements LAN: 24V DC, 1A/ Passive PoE
Pin 4,5 V DC+
Pin 7,8 V DC-
Pin 3 Reset
LAN Built-in DHCP server supporting static IP address distribution
Supports 802.1d STP (Spanning Tree)
WAN ¦ Static IP
¦ Dynamic IP
Operating Mode ¦ Bridge
Firewall NAT firewall with SPI (Stateful Packet Inspection)
Built-in NAT server supporting virtual server and DMZ
Built-in firewall with port/ IP address/ MAC/ URL filtering
Wireless Mode ¦ AP
¦ Client
¦ * WDS Repeater (AP+WDS)
Channel Width 20MHz / 40MHz
Wireless Isolation Enable to isolate each connected wireless client to let them cannot access mutually
Encryption Type 64/128-bits WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, 802.1x
Wireless Security Wireless LAN ACL (Access Control List) filtering
Wireless MAC address filtering
Enable/Disable SSID Broadcast
Multiple SSIDs * Up to 8
Max. Wireless Clients 25
Max. WDS APs 8
Max. Wired Clients 60
WMM Supports Wi-Fi multimedia
QoS Supports Quality of Service for bandwidth control
NTP Network Time Management
Self Healing Supports Schedule Reboot
Management Web UI, DHCP Client, Configuration Backup and Restore, Dynamic DNS, and SNMP
Diagnostic Tool System Log, Ping Watchdog
Environment and Certification
Operating Temperature -20~70°C
Operating Humidity 10~95% non-condensing
IP Level IP55
Regulatory CE, FCC, RoHS
Standard Accessories ¦ WNAP-6325 x 1
¦ PoE Injector x 1
¦ Power Cord x 1
¦ Plastic Strap x 1
¦ Quick Installation Guide x 1
Remark * means future firmware supports
Bilgi :

Cost-effective Wireless Solution with Superior Performance
The WNAP-6325 is designed to provide a highly-stable, better performance and cost-effective wireless solution in outdoor wireless deployment. With the same transmission power, it offers better significant range and excellent throughput than those of the traditional 802.11g wireless device. Via the embedded 14dBi dual-polarization (vertical and horizontal) directional antenna, it provides good diversity coverage and better noise immunity effect, thus heightening the performance of a long-distance, outdoor connectivity even though the environment is flooded with many 2.4GHz wireless equipment.

Designed for Various Requirements
The WNAP-6325 is dedicatedly designed for WISP solution that provides CPE users with Internet access via the WISP provider in rural areas. Besides, it caters to various wireless communication connectivities (AP / Client / WDS PtP / WDS PtMP / Repeater), thus meeting users’ application requirements.

Advanced Security and Rigorous Authentication
The WNAP-6325 supports WEP, WPA / WPA2, WPA-PSK and WPA2-PSK wireless encryptions, the advanced WPA2-AES mechanism and 802.1X RADIUS authentication, which can effectively prevent eavesdropping by unauthorized users or bandwidth occupied by unauthenticated wireless access. Furthermore, any users are granted or denied access to the Wireless LAN network based on the ACL (Access Control List) that the administrator pre-established. In addition, with the multiple-SSIDs feature, you can set up different wireless networks. The WNAP-6325 can therefore serve as a virtual access point for segmented networks tailored to any industrial need.

Flexible and Reliable Outdoor Characteristics

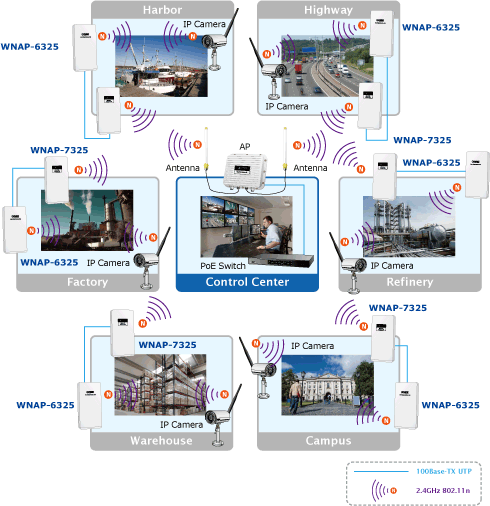

The WNAP-6325 is definitely suitable for such applications as IP surveillance, backhaul link of building to building and backbone of public service. Additionally, the self-healing/schedule reboot capability keeps connection alive all the time. Meeting the IP55 rating for outdoor UV resistant enclosure, the WNAP-6325 can perform normally under rigorous weather conditions, meaning it can be installed in any harsh, outdoor environments. With the proprietary Power over Ethernet (PoE) design, the WNAP-6325 can be easily installed in the areas where power outlets are not available.

Easy Deployment and Management
With user-friendly Web UI and step-by-step setup wizard, the WNAP-6325 is easy to install, even for users who never experience in setting up a wireless network. Furthermore, with the Planet Smart Discovery Utility and SNMP-based management interface, the WNAP-6325 is convenient to be managed and configured remotely.

Flexible Outdoor Wireless Solution

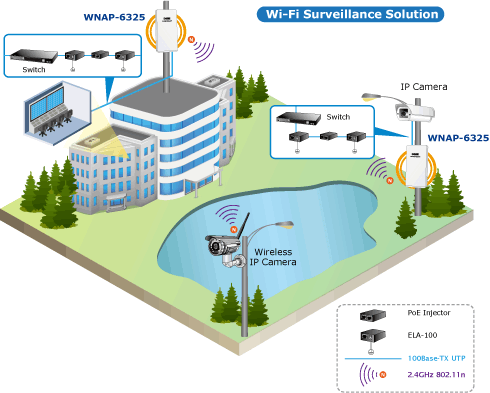

The WNAP-6325 is a cost-effective outdoor wireless solution for widely open space applications. It is definitely suitable for outdoor wireless connections between buildings and IP surveillance facilities. Furthermore, the WNAP-6325 equipped with grounding terminal can be directly grounded and perfectly prevent damage from lightning surges when functioning with PLANET ELA-100, the Ethernet Lightning Arrest Box, which assures the connection stability.

With built-in 14dBi dual-polarization directional antenna, the WNAP-6325 brings higher performance and longer distance of wireless connection. The WNAP-6325 provides high output power with multiply-adjustable Tx controller, which allows CPE users to easily install and adjust the suitable value in appropriate locations. When connecting with the WNAP-6325, the system integrator is able to provide a reliable IP surveillance solution to eliminating the limited wireless coverage of the IP camera.
